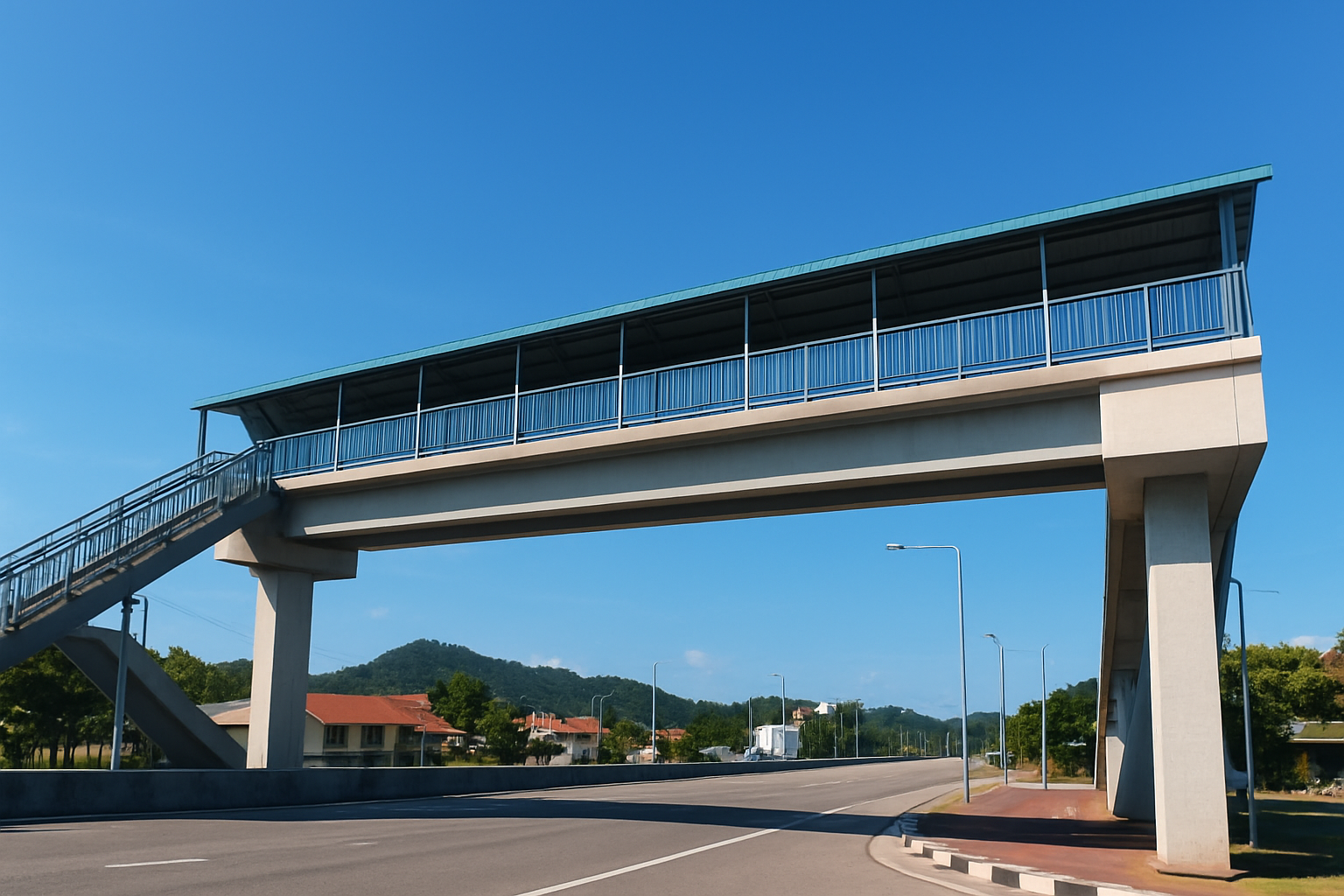

CEP Box Girder for Pedestrian Walkway (Jejantas)

Application

• Pedestrian, motorcycle and service bridges spanning roads, railways or waterway
• Bicycle and motorbike ramps at pedestrian crossing
• Link bridges between adjacent structure
• Long‑span floor decking for buildings

Key Features

• Deck and primary structural element combined into a single, robust box‑girder system
• Smooth, steel formed surface finish

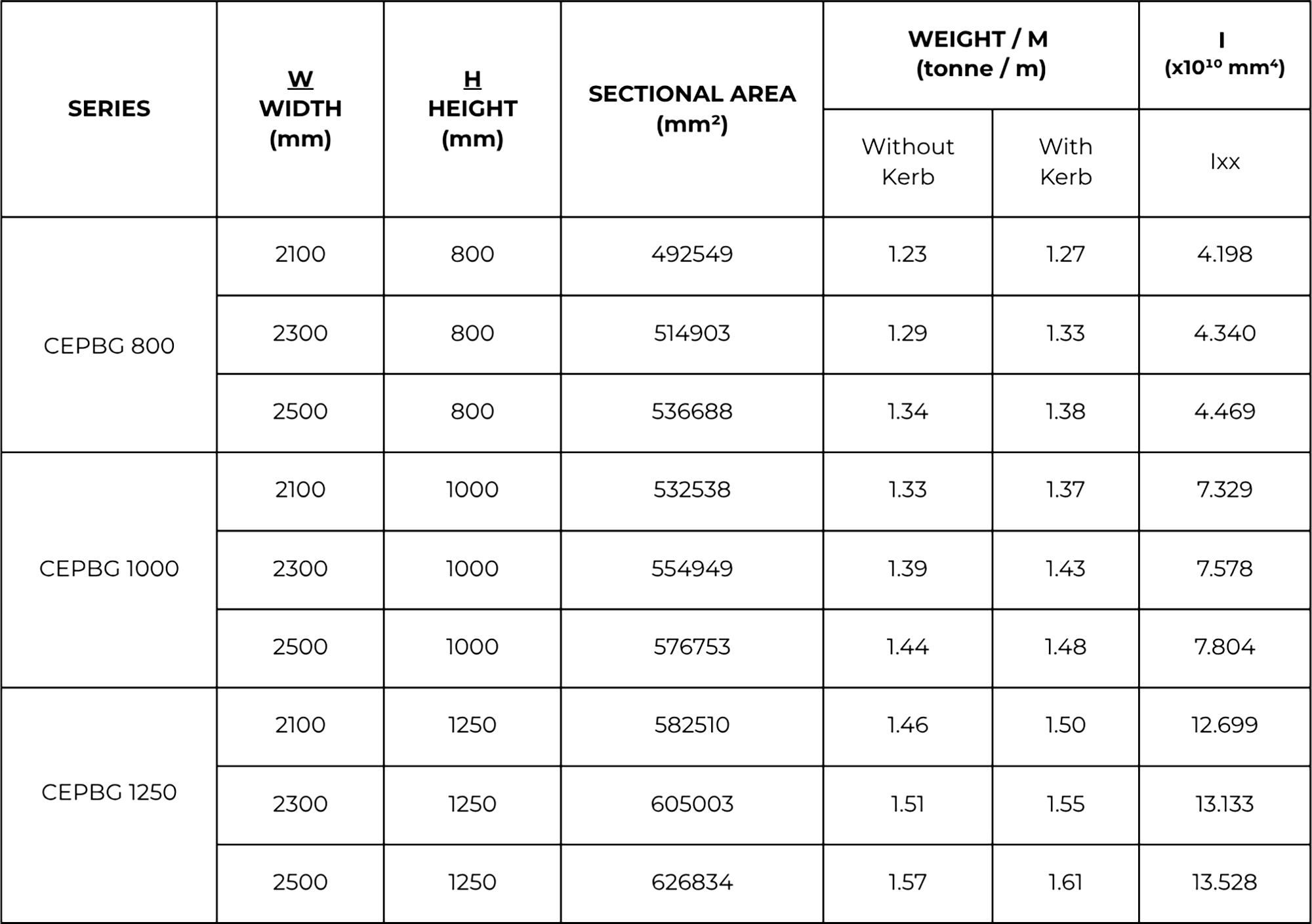

• Standard spans up to 30m
• Span lengths fully adaptable to meet project requirements

CEP Staircase for Pedestrian Walkway (Jejantas)
